Wirewound Fuse Resistor

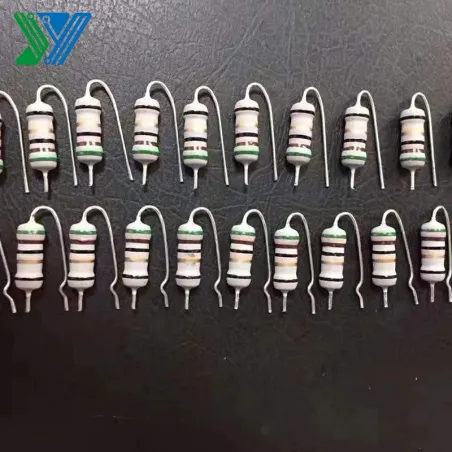

SAMPLE PRODUCT













CONSTRUCTION

FEATURES

1. Good heat-durability,low temperature coefficient,low noise,high load and power,nonflammability

2. Can be Fusible during the stated time for protecting the circuit.once wording at the required overload voltage.

3. Operating ambient temperature:-55℃~+275℃

4. The surface is gray white nonflammable coating and indicate a  black ring at the behind of the precision color ring

5. Resistance tolerance:+5%，+10%

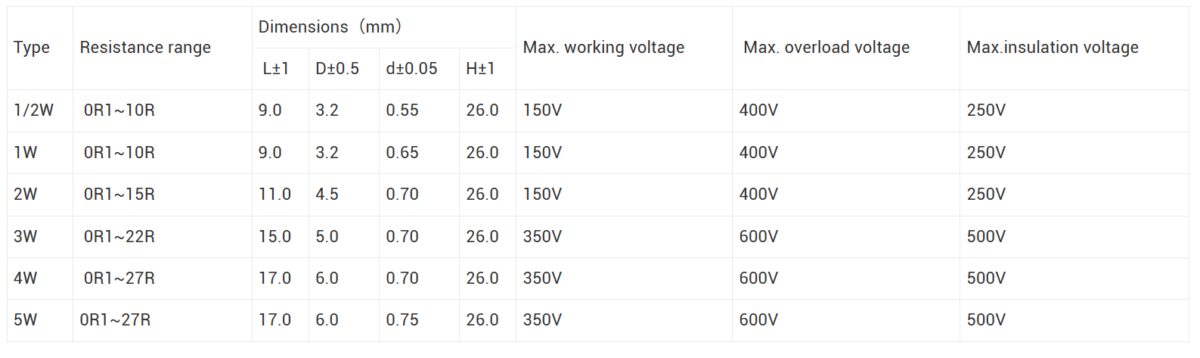

Dimensions and Voltage Performance

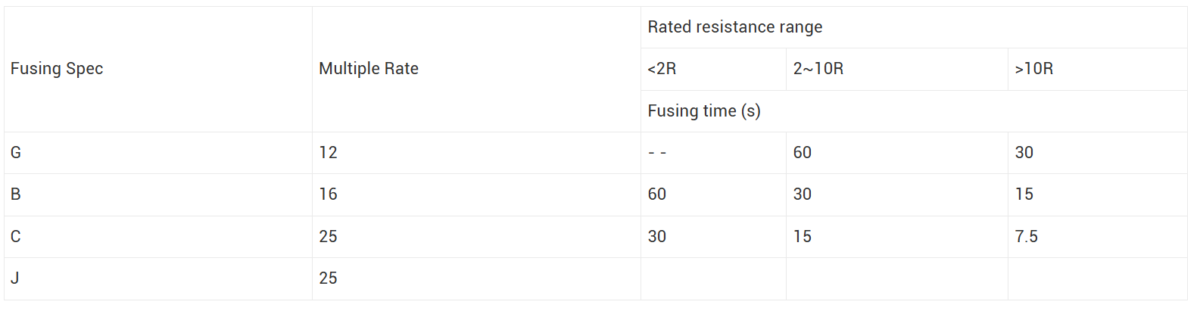

Fusing Characteristics













Note:We can according customers requirement to customize the other fusing characteristics resistors

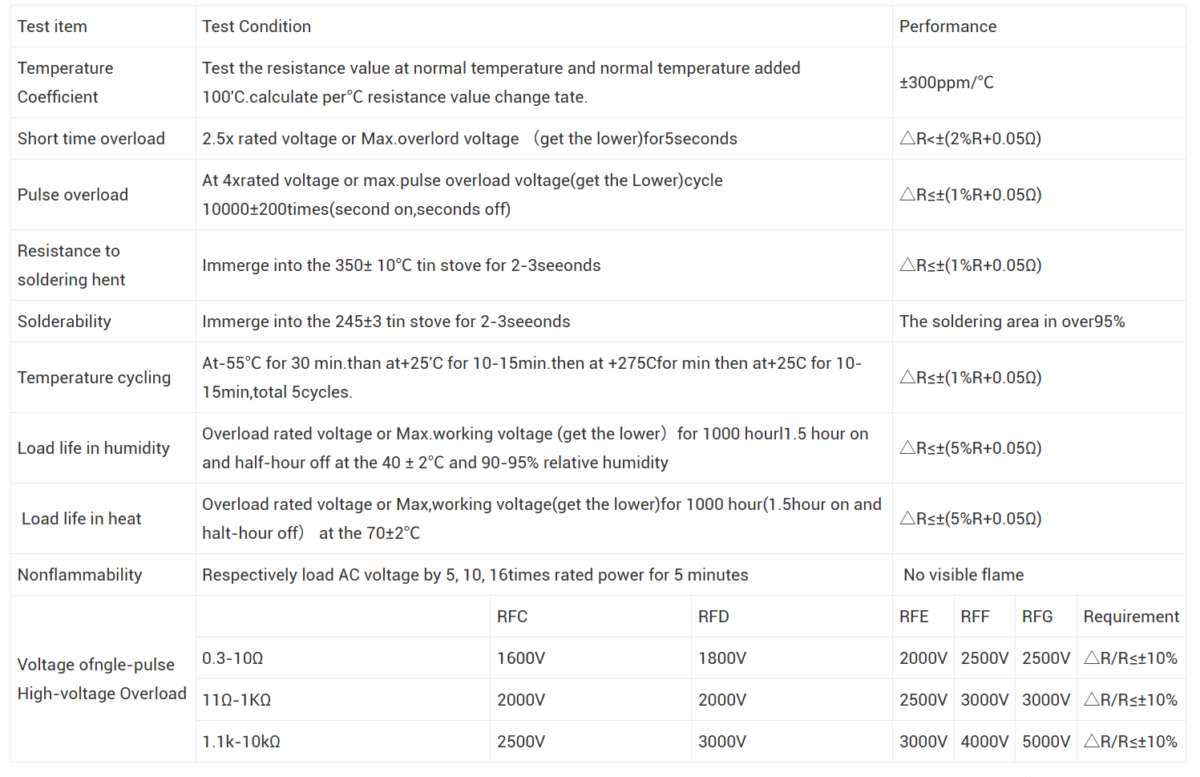

Performance Test
